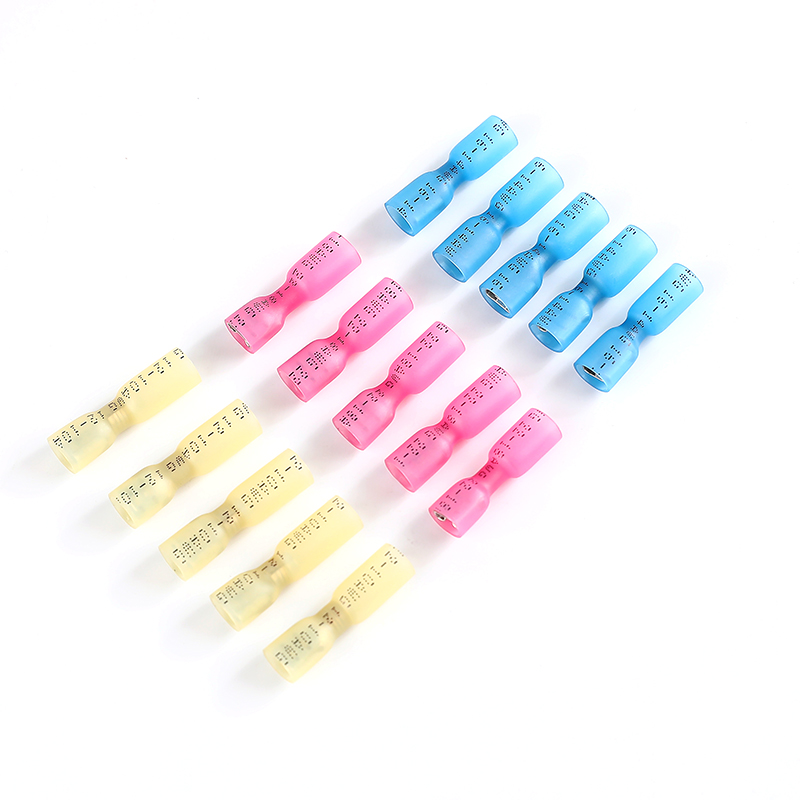

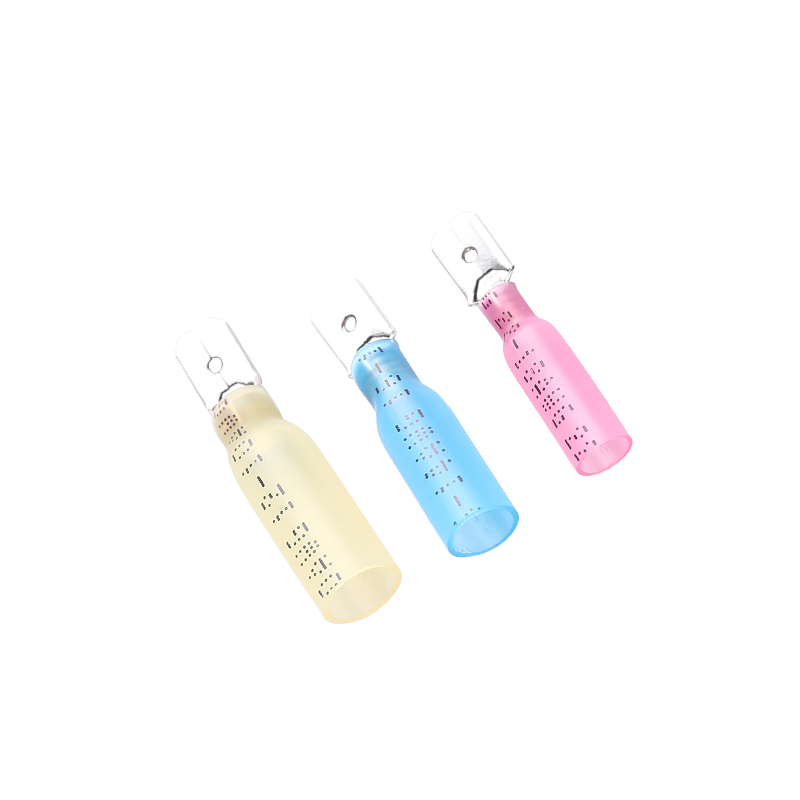

熱縮公母端子
熱縮公母端子
應用
HSFT、HSMT是由聚烯烴和熱熔膠復合生產而成的熱收縮套管，用于保護連接、防水防腐蝕，可以在粗糙的環境中加強固定和防震動，具有很好的絕緣保護電子連接器的功能。與常規的連接器相比，具有耐久性、易于安裝、安裝成本低的優勢。
特性
收縮率3：1
材料優異的延伸性能，抗機械損害
透明度佳，提高更好的抗拉力
高彈性能，管材不易變形
操作溫度范圍
操作溫度: -55℃～125℃
開始收縮溫度: 80℃
最低完全收縮溫度: 130℃
性能參數
Test Item | Characteristics | Test condition | |
Unaged | Tensile strength | Min. 16MPa | Room temp. |
Elongation | Min. 200% | ||
Aged | Tensile strength | Min. 11.5MPa | 136℃/7 days |
Elongation | Min. 100% | ||
Voltage withstand and breakdown Voltage(Unaged) | Withstand 2.5 KV for 1minute and breakdown | Room temp. | |
Voltage withstand and breakdown Voltage(Aged) | Withstand 2.5 KV for 1minute and breakdown at least half of unaged breakdown voltage | 136℃/7 days | |
Copper corrosion | No corrosion of bare copper | 136℃/7 days | |
Copper stability | No sign of degradation Min.Elongation 100% | 136℃/7 days | |
Cold bend | No crack | -30℃/4 hrs | |
Maximum secant modulus(2%) | 250 MPa | - | |
Volume resistivity | Min.1014Ω-cm | - | |
Heat shock | No crack | 200℃/4 hrs | |

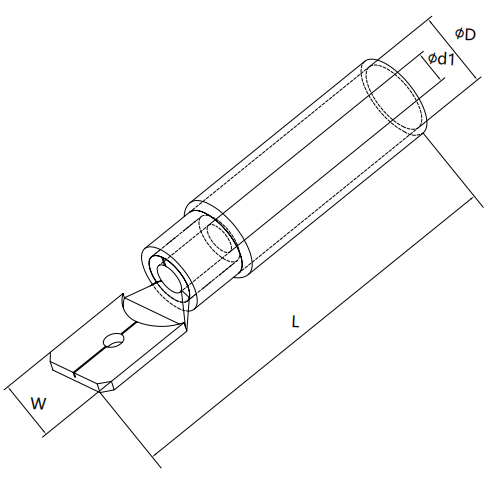

產品規格-HSFT
Part. No |
Wire Range |
Tab Size(mm) | （mm） | Length（mm） | Insulator | Color | |||
A.W.G | mm2 | Size | d1 | D | W | L | |||
MDD 1-250 | 22-18 | 0.5-1.0 | 6.3 x 0.8 | 1.8 | 4.7 | 6.3 | 31 | PE | Red |
MDD 2-250 | 16-14 | 1.5-2.5 | 6.3 x 0.8 | 2.3 | 5.7 | 6.3 | 31 | PE | Blue |
MDD 5-250 | 12-10 | 4-6 | 6.3 x 0.8 | 3.5 | 6.7 | 6.3 | 33 | PE | Yellow |

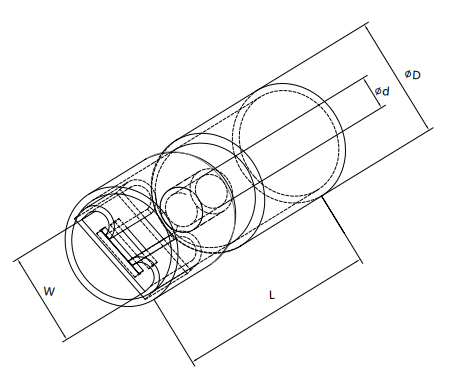

產品規格-HSMT
Part. No |
Wire Range |
Tab Size(mm) | （mm） | Length（mm） | Insulator | Color | |||
A.W.G | mm2 | Size | d | D | W | L | |||
FDFD 1-250 | 22-18 | 0.5-1.0 | 6.6x 0.35 | 1.8 | 7.0 | 6.6 | 29 | PE | Red |
FDFD 2-250 | 16-14 | 1.5-2.5 | 6.6x 0.35 | 2.3 | 7.0 | 6.6 | 30 | PE | Blue |
FDFD 5-250 | 12-10 | 4.0-6.0 | 6.6x 0.35 | 3.5 | 7.0 | 6.6 | 32 | PE | Yellow |
